jmap 堆快照工具

JDK中的jmap是一个实用的JVM诊断工具,它可以用于生成JVM堆的快照信息,在分析Java应用程序的内存使用和排查内存泄漏问题时非常有用。下面我们以JDK8为例对jmap工具的使用方法进行介绍。

查看堆内存整体使用情况

-heap参数用于输出JVM中堆内存的统计信息。

jmap -heap <pid>

下面是一个执行该命令的例子输出。

Attaching to process ID 25684, please wait...
Debugger attached successfully.
Server compiler detected.
JVM version is 25.382-b05

using thread-local object allocation.
Parallel GC with 18 thread(s)

Heap Configuration:
   MinHeapFreeRatio         = 0
   MaxHeapFreeRatio         = 100
   MaxHeapSize              = 17121148928 (16328.0MB)
   NewSize                  = 357040128 (340.5MB)
   MaxNewSize               = 5706874880 (5442.5MB)
   OldSize                  = 714604544 (681.5MB)
   NewRatio                 = 2
   SurvivorRatio            = 8
   MetaspaceSize            = 21807104 (20.796875MB)
   CompressedClassSpaceSize = 1073741824 (1024.0MB)
   MaxMetaspaceSize         = 17592186044415 MB
   G1HeapRegionSize         = 0 (0.0MB)

Heap Usage:
PS Young Generation
Eden Space:
   capacity = 267911168 (255.5MB)
   used     = 140703536 (134.1853485107422MB)
   free     = 127207632 (121.31465148925781MB)
   52.51872740146465% used
From Space:
   capacity = 44564480 (42.5MB)
   used     = 0 (0.0MB)
   free     = 44564480 (42.5MB)
   0.0% used
To Space:
   capacity = 44564480 (42.5MB)
   used     = 0 (0.0MB)
   free     = 44564480 (42.5MB)
   0.0% used
PS Old Generation
   capacity = 497025024 (474.0MB)
   used     = 15699920 (14.972610473632812MB)
   free     = 481325104 (459.0273895263672MB)
   3.1587785809351927% used

15096 interned Strings occupying 1367912 bytes.

输出内容中包括了堆各分区的大小、已使用空间、空闲空间等各种信息。

查看元数据空间类加载统计信息

-clstats参数用于输出元数据空间中类加载的统计信息。

jmap -clstats <pid>

下面是一个执行该命令的例子输出。

Attaching to process ID 25684, please wait...
Debugger attached successfully.
Server compiler detected.
JVM version is 25.382-b05
finding class loader instances ..done.
computing per loader stat ..done.
please wait.. computing liveness......liveness analysis may be inaccurate ...
class_loader    classes bytes   parent_loader   alive?  type

<bootstrap>     2175    3789701   null          live    <internal>
0x00000003c389d588      1       1472      null          dead    sun/reflect/DelegatingClassLoader@0x00000007c0009e78
0x00000003c389b200      1       773       null          dead    javax/management/remote/rmi/NoCallStackClassLoader@0x00000007c00e2850
0x0000000673b193b8      1       1471      null          dead    sun/reflect/DelegatingClassLoader@0x00000007c0009e78
0x0000000670fe1270      1       1472    0x00000003c380e140      dead    sun/reflect/DelegatingClassLoader@0x00000007c0009e78
0x0000000673b6beb8      1       1471      null          dead    sun/reflect/DelegatingClassLoader@0x00000007c0009e78
0x0000000674008190      0       0       0x00000003c380e140      dead    javax/management/remote/rmi/RMIConnectionImpl$CombinedClassLoader@0x00000007c0443540
0x0000000674008590      0       0       0x00000006740081d8      dead    javax/management/remote/rmi/RMIConnectionImpl$CombinedClassLoader$ClassLoaderWrapper@0x00000007c0443858
0x0000000671333020      1       1472    0x00000003c380e140      dead    sun/reflect/DelegatingClassLoader@0x00000007c0009e78
0x0000000673b40ba0      1       1471      null          dead    sun/reflect/DelegatingClassLoader@0x00000007c0009e78
0x0000000673d51dc0      0       0       0x00000003c380e140      dead    javax/management/remote/rmi/RMIConnectionImpl$CombinedClassLoader@0x00000007c0443540
0x0000000673d51fc0      0       0       0x00000003c380e140      dead    javax/management/remote/rmi/RMIConnectionImpl$CombinedClassLoader$ClassLoaderWrapper@0x00000007c0443858
0x0000000674002e98      0       0       0x00000003c380e140      dead    com/sun/jmx/remote/util/OrderClassLoaders@0x00000007c0445eb0
0x00000003c389af90      1       1471      null          dead    sun/reflect/DelegatingClassLoader@0x00000007c0009e78
0x0000000673b336a8      0       0       0x00000003c380e140      dead    javax/management/remote/rmi/RMIConnectionImpl$CombinedClassLoader$ClassLoaderWrapper@0x00000007c0443858
0x0000000673b5eca8      1       1471      null          dead    sun/reflect/DelegatingClassLoader@0x00000007c0009e78
0x00000006711f3e80      1       880       null          dead    sun/reflect/DelegatingClassLoader@0x00000007c0009e78
0x0000000673ff7d60      0       0       0x00000003c380e140      dead    com/sun/jmx/remote/util/OrderClassLoaders@0x00000007c0445eb0
0x00000003c3820920      1       1472      null          dead    sun/reflect/DelegatingClassLoader@0x00000007c0009e78
0x0000000670addb08      1       1471    0x00000003c380e140      dead    sun/reflect/DelegatingClassLoader@0x00000007c0009e78
0x0000000673fe9fd8      0       0       0x0000000673fe9c20      dead    javax/management/remote/rmi/RMIConnectionImpl$CombinedClassLoader$ClassLoaderWrapper@0x00000007c0443858
0x0000000673b71f90      1       1471      null          dead    sun/reflect/DelegatingClassLoader@0x00000007c0009e78
0x00000003c381ed28      1       1471    0x00000003c380e140      dead    sun/reflect/DelegatingClassLoader@0x00000007c0009e78
0x00000003c381f128      1       1471    0x00000003c380e140      dead    sun/reflect/DelegatingClassLoader@0x00000007c0009e78
0x0000000671340998      1       1472    0x00000003c380e140      dead    sun/reflect/DelegatingClassLoader@0x00000007c0009e78
0x000000067110cd20      1       880       null          dead    sun/reflect/DelegatingClassLoader@0x00000007c0009e78
0x00000006711e2d28      1       1472    0x00000003c380e140      dead    sun/reflect/DelegatingClassLoader@0x00000007c0009e78
0x0000000673d6b2e0      1       1471      null          dead    sun/reflect/DelegatingClassLoader@0x00000007c0009e78
0x0000000673fef3c8      0       0       0x00000003c380e140      dead    javax/management/remote/rmi/RMIConnectionImpl$CombinedClassLoader@0x00000007c0443540
0x0000000673fef5c8      0       0       0x00000003c380e140      dead    javax/management/remote/rmi/RMIConnectionImpl$CombinedClassLoader$ClassLoaderWrapper@0x00000007c0443858
0x00000003c389b130      1       1471      null          dead    sun/reflect/DelegatingClassLoader@0x00000007c0009e78
0x00000003c380e140      3070    5136665 0x00000003c38702f0      live    sun/misc/Launcher$AppClassLoader@0x00000007c000f730
0x000000067130a170      1       1472      null          dead    sun/reflect/DelegatingClassLoader@0x00000007c0009e78
0x00000003c3d1e010      0       0       0x00000003c380e140      live    java/util/ResourceBundle$RBClassLoader@0x00000007c0111d60
0x00000003c3822cc0      1       1472      null          dead    sun/reflect/DelegatingClassLoader@0x00000007c0009e78
0x000000066fe70220      0       0       0x00000003c380e140      live    org/springframework/boot/web/embedded/tomcat/TomcatEmbeddedWebappClassLoader@0x00000007c03865f8
0x0000000673ffd8b8      0       0       0x00000003c380e140      dead    javax/management/remote/rmi/RMIConnectionImpl$CombinedClassLoader@0x00000007c0443540
0x0000000673ffdcb8      0       0       0x0000000673ffd900      dead    javax/management/remote/rmi/RMIConnectionImpl$CombinedClassLoader$ClassLoaderWrapper@0x00000007c0443858
0x0000000673b86570      1       1471      null          dead    sun/reflect/DelegatingClassLoader@0x00000007c0009e78
0x00000003c389aec0      1       1471      null          dead    sun/reflect/DelegatingClassLoader@0x00000007c0009e78
0x00000003c38207c8      1       1472      null          dead    sun/reflect/DelegatingClassLoader@0x00000007c0009e78
0x0000000673b31ff8      0       0       0x00000003c380e140      dead    com/sun/jmx/remote/util/ClassLoaderWithRepository@0x00000007c0443008
0x000000066cb57bf8      1       1471    0x00000003c380e140      dead    sun/reflect/DelegatingClassLoader@0x00000007c0009e78
0x00000006729d52d0      1       1472    0x00000003c380e140      dead    sun/reflect/DelegatingClassLoader@0x00000007c0009e78
0x0000000673fdff30      0       0       0x00000003c380e140      dead    javax/management/remote/rmi/RMIConnectionImpl$CombinedClassLoader@0x00000007c0443540
0x0000000673fe0130      0       0       0x00000003c380e140      dead    javax/management/remote/rmi/RMIConnectionImpl$CombinedClassLoader$ClassLoaderWrapper@0x00000007c0443858
0x0000000673b04960      1       1471      null          dead    sun/reflect/DelegatingClassLoader@0x00000007c0009e78
0x0000000674002e50      0       0       0x00000003c380e140      dead    javax/management/remote/rmi/RMIConnectionImpl$CombinedClassLoader@0x00000007c0443540
0x0000000674003250      0       0       0x0000000674002e98      dead    javax/management/remote/rmi/RMIConnectionImpl$CombinedClassLoader$ClassLoaderWrapper@0x00000007c0443858
0x0000000673fef1a8      0       0       0x00000003c380e140      dead    com/sun/jmx/remote/util/ClassLoaderWithRepository@0x00000007c0443008
0x0000000673b0b268      1       1471      null          dead    sun/reflect/DelegatingClassLoader@0x00000007c0009e78
0x00000006740081d8      0       0       0x00000003c380e140      dead    com/sun/jmx/remote/util/OrderClassLoaders@0x00000007c0445eb0
0x00000003c381f3d8      1       1471    0x00000003c380e140      dead    sun/reflect/DelegatingClassLoader@0x00000007c0009e78
0x00000006712472f8      1       1472    0x00000003c380e140      dead    sun/reflect/DelegatingClassLoader@0x00000007c0009e78
0x0000000673b56ce8      1       1471      null          dead    sun/reflect/DelegatingClassLoader@0x00000007c0009e78
0x0000000673fe9c20      0       0       0x00000003c380e140      dead    com/sun/jmx/remote/util/OrderClassLoaders@0x00000007c0445eb0
0x0000000673b12b50      1       1471      null          dead    sun/reflect/DelegatingClassLoader@0x00000007c0009e78
0x000000067112d270      1       1472    0x00000003c380e140      dead    sun/reflect/DelegatingClassLoader@0x00000007c0009e78
0x0000000673ff7d18      0       0       0x00000003c380e140      dead    javax/management/remote/rmi/RMIConnectionImpl$CombinedClassLoader@0x00000007c0443540
0x0000000673ff8118      0       0       0x0000000673ff7d60      dead    javax/management/remote/rmi/RMIConnectionImpl$CombinedClassLoader$ClassLoaderWrapper@0x00000007c0443858
0x00000003c389b060      1       1471      null          dead    sun/reflect/DelegatingClassLoader@0x00000007c0009e78
0x00000003c389b2e0      1       742       null          dead    javax/management/remote/rmi/NoCallStackClassLoader@0x00000007c00e2850
0x0000000673b33058      0       0       0x00000003c380e140      dead    javax/management/remote/rmi/RMIConnectionImpl$CombinedClassLoader@0x00000007c0443540
0x000000066dec5f80      1       1472    0x00000003c380e140      dead    sun/reflect/DelegatingClassLoader@0x00000007c0009e78
0x0000000673d5c7b8      1       1471      null          dead    sun/reflect/DelegatingClassLoader@0x00000007c0009e78
0x0000000673fdfd10      0       0       0x00000003c380e140      dead    com/sun/jmx/remote/util/ClassLoaderWithRepository@0x00000007c0443008
0x00000003c38209f0      1       1472    0x00000003c380e140      dead    sun/reflect/DelegatingClassLoader@0x00000007c0009e78
0x00000006716d7c98      1       1472      null          dead    sun/reflect/DelegatingClassLoader@0x00000007c0009e78
0x0000000673d51ba0      0       0       0x00000003c380e140      dead    com/sun/jmx/remote/util/ClassLoaderWithRepository@0x00000007c0443008
0x000000066cb6f240      1       1472    0x00000003c380e140      dead    sun/reflect/DelegatingClassLoader@0x00000007c0009e78
0x00000003c38702f0      11      13304     null          live    sun/misc/Launcher$ExtClassLoader@0x00000007c000fad8
0x00000003c381f1f8      1       1471    0x00000003c380e140      dead    sun/reflect/DelegatingClassLoader@0x00000007c0009e78
0x0000000671c9c3b0      1       880       null          dead    sun/reflect/DelegatingClassLoader@0x00000007c0009e78
0x0000000673d63fa8      1       1471      null          dead    sun/reflect/DelegatingClassLoader@0x00000007c0009e78
0x0000000673fe9780      0       0       0x00000003c380e140      dead    javax/management/remote/rmi/RMIConnectionImpl$CombinedClassLoader@0x00000007c0443540
0x000000066bf74d88      1       1472    0x00000003c380e140      dead    sun/reflect/DelegatingClassLoader@0x00000007c0009e78
0x0000000673b795c8      1       1084    0x00000003c380e140      dead    sun/reflect/misc/MethodUtil@0x00000007c0444cf8
0x0000000673ffd900      0       0       0x00000003c380e140      dead    com/sun/jmx/remote/util/OrderClassLoaders@0x00000007c0445eb0

total = 78      5302    9003766     N/A         alive=5, dead=73            N/A

查看堆内存对象统计信息

-histo参数用于输出堆中的对象统计信息,如果加上live参数,则只统计活动对象。

jmap -histo <pid>
jmap -histo:live <pid>

这里要注意的一点是live参数会立即触发1次FullGC,如果是线上工程应该谨慎使用,既然如此,该命令其实也可以用于在命令行手动触发1次FullGC。

下面是一个执行该命令的例子输出。

 num     #instances         #bytes  class name
----------------------------------------------
   1:          6152        6746632  [B
   2:         34507        3465760  [C
   3:          5574         945584  [I
   4:         34317         823608  java.lang.String
   5:          8883         781704  java.lang.reflect.Method
   6:          6567         779080  java.lang.Class
   7:         13610         435520  java.util.concurrent.ConcurrentHashMap$Node
   8:          6513         343640  [Ljava.lang.Object;
   9:          3592         307976  [Ljava.util.HashMap$Node;
  10:          7589         303560  java.util.LinkedHashMap$Entry
  11:          7790         249280  java.util.HashMap$Node
  12:         10774         242616  [Ljava.lang.Class;
  13:          3592         201152  java.util.LinkedHashMap
  14:           111         154224  [Ljava.util.concurrent.ConcurrentHashMap$Node;
  15:          8398         134368  java.lang.Object
  16:          3114         124560  java.lang.ref.Finalizer
  17:          1476         106272  java.lang.reflect.Field
  18:          1134          90720  java.lang.reflect.Constructor
  19:          1623          77904  java.util.HashMap
  20:          1351          75656  java.lang.invoke.MemberName
  21:          1336          74816  java.util.zip.ZipFile$ZipFileInputStream
  22:          1334          74704  java.util.zip.ZipFile$ZipFileInflaterInputStream
  23:          1187          66472  java.lang.Class$ReflectionData
  24:          1244          65408  [Ljava.lang.reflect.Method;
  25:          1540          61600  java.lang.ref.SoftReference
  26:          1336          57424  [Ljava.lang.String;
  27:          1079          51792  org.springframework.core.ResolvableType
  28:          1237          49480  java.util.TreeMap$Entry
  29:          1163          46520  java.lang.invoke.MethodType
  30:          1295          41440  java.lang.invoke.MethodType$ConcurrentWeakInternSet$WeakEntry
  31:          1253          40096  java.util.concurrent.locks.ReentrantLock$NonfairSync
  32:          1051          33632  java.util.Hashtable$Entry
  33:          1363          32712  java.util.ArrayList
  34:           152          29184  org.springframework.context.annotation.ConfigurationClassBeanDefinitionReader$ConfigurationClassBeanDefinition
  35:           829          26528  java.lang.invoke.DirectMethodHandle
  36:           789          25248  java.lang.ref.ReferenceQueue
  37:          1012          24288  sun.reflect.annotation.AnnotationInvocationHandler

生成堆转储文件

我们可以使用如下命令生成堆转储文件,这里我们指定了live参数表示只转储堆中的活动对象。

jmap -dump:live,format=b,file=heapdump.bin <pid>

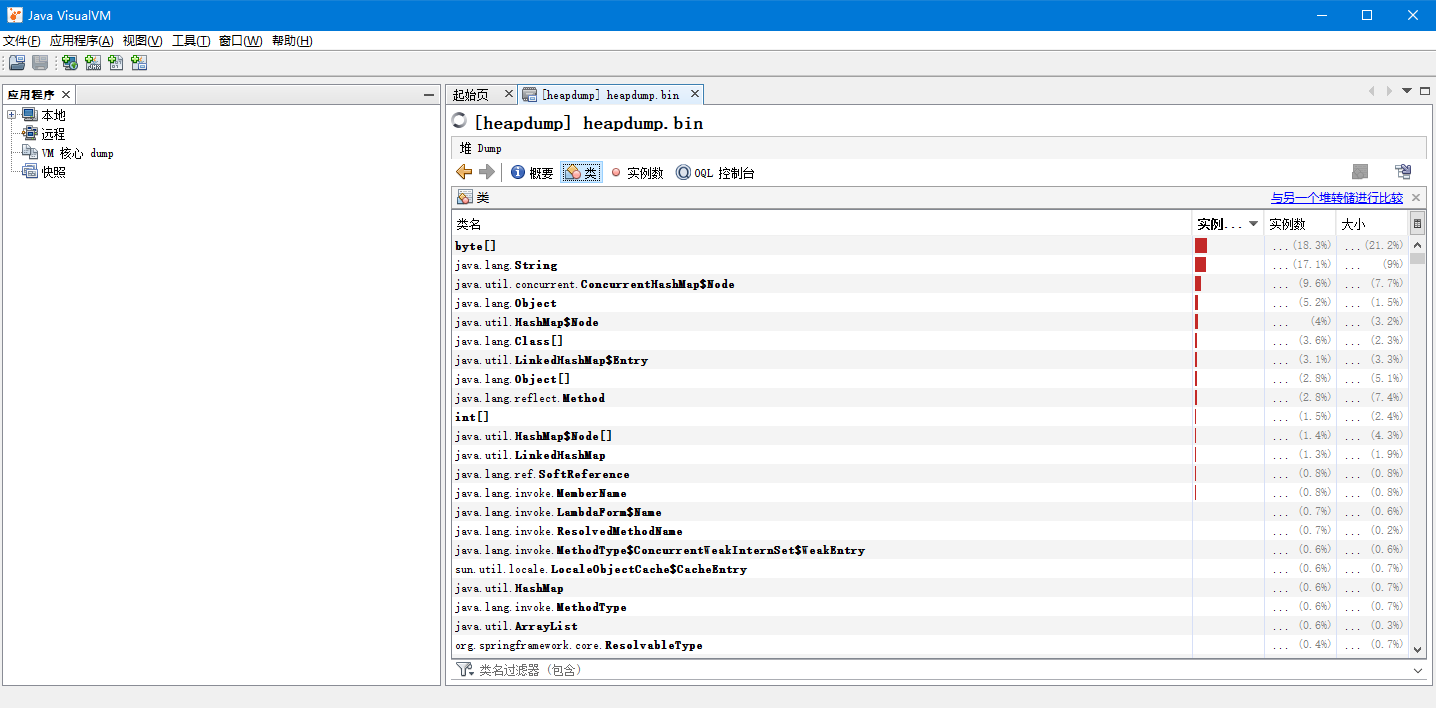

我们可以在VisualVM工具中打开堆转储文件,并分析其中的内容。

生成堆转储文件时要注意,线上工程的堆内存可能比较大,生成一个巨大的转储文件可能会影响主机的性能,此外如何取回生成的堆转储文件也是个问题,因此这种方式也有一定局限性。
